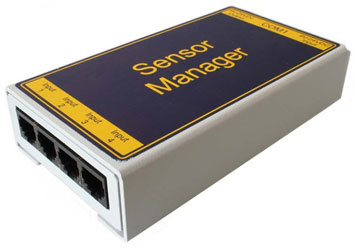

Generex Sensor Manager II

Generex SensorManager is an extension for the CS121 suite of UPS management cards to allow enviormental monitoring and enhanced functionality

The Sensor Manager is a system extension for the CS121 series UPS management cards and BACS Battery Management Systems for additional inputs and outputs.

The SensorManager is a universal remote sensor control box for the monitoring of temperature, humidity and many other types of sensors as well as for the management of digital input/output signals.

8 analogue inputs (0-10V) 4 digital inputs 4 digital outputs (30 V 500mA). Inputs are configurable as normally open or as normally closed. Digital inputs are connected to the RJ12 sockets. Optional splitting plug available for attaching two sensors to one RJ12 socket. Logical for inputs and outputs are controlled through a powerful event manager for individual configurations of automatic alarm responses. Events can also be configured for combinations of sensors using AND / OR logic for programming of your alarms. The control and execution of the events can be defined individually via the adjustment of thresholds like the shutdown of the UPS or the system. Graphical display of the analog measurement values with the overlay of the thresholds.

View compatible sensors

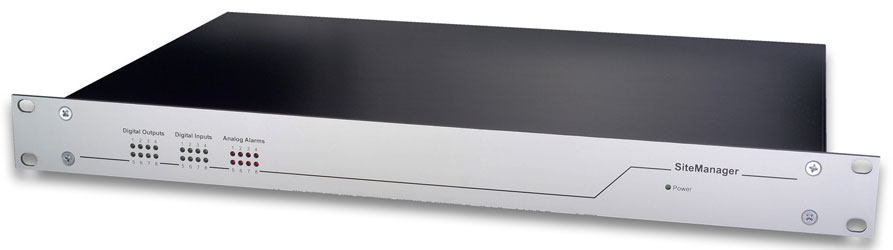

SiteManager II

Generex SITEMANAGER II is a professional monitoring and management unit in a rackmount configuration

The SITEMANAGER II is a professional monitoring and management unit. This 19"- rack unit can be used for rack systems for server and datacentre rooms and for industrial applications. The unit provides the ability to monitor UPS, environmental data, power data and other equipment (via digital inputs).

This system allows alarm thresholds based on your unique requirements to be set individually or using logic.

The device can be operated via the web browser interface to switch 8 outputs (up to 4A AC), and to monitor 8 digital (dry-contact alarm input and/or outputs) and 8 analogue inputs (0-10V, 0-20mA and/ or 4-20mA sensors). Simple Plug ' n Play connections insure that different sensors and actuators can be easily and safely installed. Individual or customized sensor may be used if their information is given in analog form between 0-10V or 0/4-20mA. Each input can be scaled (calibrated) individually, so that temperature -, and humidity sensors as well as voltage and current transformers can be used. Users can individually configure alarms and automatic reactions. The SITEMANAGER is fully UNMS compatible - fully manageable through UNMS software. The user can individually control the 8 230V outlets and react to alarms from the digital inputs or analogue measuring devices. RCCMD server is included, to manage remote shutdown of network computers.

Supported Protocols: E-Mail, telnet, HTTP, SNMP, SNTP, RFC868, ModbusOverIP, UPSMON, UNMS RS-232 Interface for additional equipment like UPS, almost any UPS RS-232 protocol

View compatible sensors

SiteMonitor II

Generex SITEMONITOR II is a facility monitoring and management unit in a rackmount configuration

Setup a complete facility alarm system that can be managed and monitored over the network. Simply install door, window, fire, smoke and other digital contact alarms where needed and connect them to the SITEMONITOR II. No system supervision is necessary. The SITEMONITOR II manages all alarms independently in accordance with the administrator’s configuration. Network and system shutdowns (RCCMD required) are executed automatically, and alarms are relayed using email or SMS to the responsible parties. The SITEMONITOR II is a stand-alone management system that also integrates well into other network management systems. The SITEMONITOR II has been specifically developed for the monitoring of additional devices or monitoring buildings alone or in conjunction with UPS Management Software.

The device incorporates 64 potential free contacts, and the status is displayed via 64 LEDs on the front of the device. Via the integrated serial interface, all information can be read and processed by other systems. An unlimited number of SITEMONITOR IIs can be centrally monitored with one computer running UNMS II. The SITEMONITOR II is sized to fit into a 19-inch racks or into 19-inch wall units.

Supported Protocols: E-Mail, telnet, HTTP, SNMP, SNTP, RFC868, ModbusOverIP, UPSMON, UNMS RS-232 Interface for additional equipment like UPS, almost any UPS RS-232 protocol

View compatible sensors

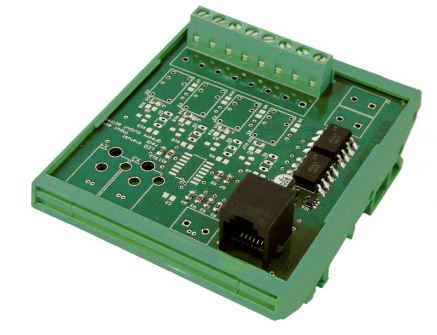

Connection Terminal - CON_AUX (SENSORMANAGER II System)

Converter from RJ12 (CS121 AUX) to Screw terminals. Allows to connect and manage up to 4 Input alarms, free configurable for direct connection of dry contact alarm input devices to the CS121. Incl. 1m RJ12/6_1 cable, max. distance to device is 2m. For DIN Rail mounting. Usable for CS121 with AUX interface. Not compatible with CS121-mini

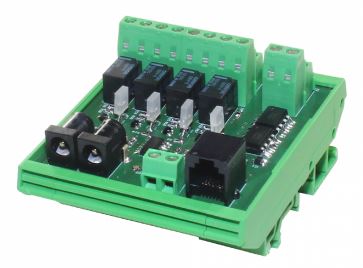

Relay Board - CON_R_AUX

Relay connection terminal - this device is an I/O interface with 4 digital inputs (opto-coupler) and 4 relay outputs (0.5A /125V AC or 1A /24V DC) and LEDs showing the actual relay position. Inputs and Outputs are free configurable through the CS121. For connection of dry contact devices to a CS121 AUX with cable length up to 100m. For DIN rail mounting, Usable for CS121 with AUX interface. Includes: Connection cable RJ12/6_1 - 1 meter, 12V DC 230V/50Hz power supply. Not compatible with CS121-mini

Profibus Converter

Converter from CS121 RS232 COM2 MODBUS to Profibus fieldbus. CS121 standard Modbus values addresses 100 to 142 are supported - more values on demand. Wide range input power supply voltage 10-33 VDC DB-9 fieldbus connector External DIN rail device. Includes: German and English user documentation.. 230V/50Hz-12V 500mA power supply COM2 MODBUS mini DIN 8 cable

LONWorks Converter

Converter from CS121 RS232 COM2 MODBUS to LONbus fieldbus. CS121 standard Modbus values addresses 100 to 142 are supported - more values on demand. Wide range input power supply voltage 10-33 VDC DB-9 fieldbus connector External DIN rail device. Includes: German and English user documentation.. 230V/50Hz-12V 500mA power supply COM2 MODBUS mini DIN 8 cable

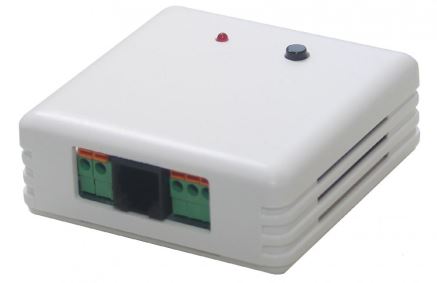

Alarm Buzzer – CS121_BUZ

Buzzer, with internal power supply, directly connected to the CS121 AUX Port. Alarm reset via Web browser and manual mute button. Sound Level 60dB. Indoor use IP 22. Includes connection cable RJ12/6_5 - 5m/196.85in.

Temperature sensor – SM_T_COM

Measurement Range: -25°C - +100 °C. +/- 0.5% For direct connection to COM2 of CS121. Indoor use, IP 22. Includes connection cable DB9-Mini-DIN, 1.8m.

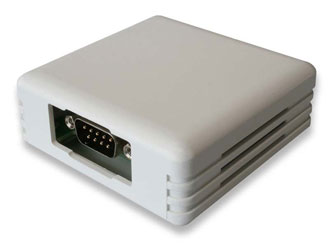

Temperature / Humidity sensor – SM_TH_COM

Measurement Range: -25°C - +100 °C +/- 0.5%. 0%-100% rel. humidity +/- 2% For direct connection to COM2 of CS121. Indoor use, IP 22. Includes connection cable DB9-Mini-DIN, 1.8m.

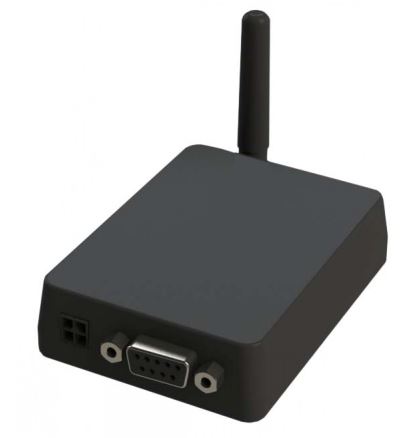

GSM Modem

GSM SMS Modem for the direct transmission of SMS message from a CS121, BACS WEBMANAGER, SITEMANAGER. Compatible to SIEMENS TC35i. Includes: Power supply 110-230V GSM antenna GSM_A adapter

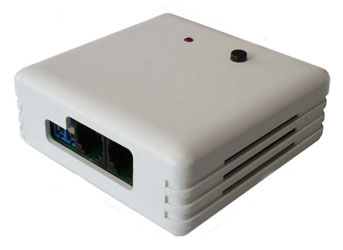

Alarm Buzzer – SM_BUZ

Sound Level: 85dB Power Supply Voltage: 12-15V DC Current Consumption: ca. 20mA Switch contact: 125V AC, 1A (NO, NC contact) Cables : RJ12/6_5, 5m, (Included) max. 50m Dimensions: 70 x 70 x 27 mm (W x L x H)

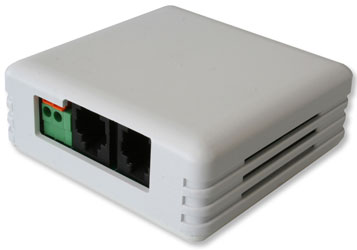

Temperature sensor – SM_T

Measurement Range: 0°C - +100 °C. +/- 1% Power Supply Voltage: 15-24V DC Output Voltage: 0-10VDC Additional Inputs: 1 Digital (Additional Sensor) Special Features: Connection for other sensors Connection Cable: RJ12/6_5, 5m, Included, max. 50m Dimensions: 70 x 70 x 27 mm (W x L x H)

Temperature sensor – SM_TH

Temperature sensor – SM_TH Measurement Range Temperature: 0°C - +100 °C. +/- 1% Measurement Range Relative Humidity: 0 – 100% RH. +/- 5% Power Supply Voltage: 15-24V DC Output Voltage: 2 x 0-10VDC Additional Inputs: 1 Digital (Additional Sensor) Special Features: Connection for other sensors Connection Cable: RJ12/6_5, 5m, Included, max. 50m Dimensions: 70 x 70 x 27 mm (W x L x H)

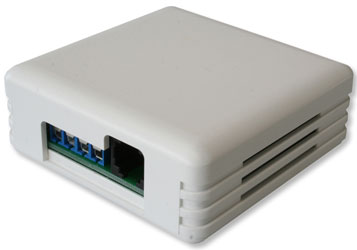

True RMS Converter AC Voltage – SM_VMC

Measurement Range: 160 - 250V (AC, True RMS) Power Supply Voltage: 12 - 24V DC Output Signal: 0 - 10V DC Special Features: Measurement via accompanying power supply Connection Cable: RJ12/6_5, 5m, (Included) max. 50m Dimensions: 70 x 70 x 27 mm (W x L x H)

Water and high humidity sensor – SM_HYGRO

Measurement Range: 94% rel. Humidity Power Supply: 230VAC, +/- 10%, 3VA Current Consumption: ca. 15 mA Contact Load: 250 VAC, 6A Type of Contact: NC Special Features: 1 Sensor (Included in delivery) included alarm buzzer

Sensor for SM_HYGRO – SM_HYGRO_S Up to 3 sensors may be connected Connection Cable: RJ12/6_5, 5m, (Included) max. 50m Dimensions: 112 x 94 x 52 mm (W x L x H)

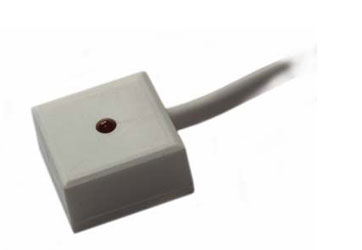

Glass break sensor – SM_GLAS

Measurement Range: Radius ca. 2m. Digital input alarm. Connection cable RJ12/6_5, 2m

Motion Detector – SM_MD

Type of Contact: NC Frequency Domain: 120 kHz Dimensions: 27 x 27 x 14 mm (W x L x H) Measurement Range: 14m * 14m, 90°. Infrared, type BW2200. Connection Cable: RJ12/6_5, 5m, (Included) max. 50m

Smoke Detector – SM_SD

Power Supply Voltage: 10 – 15V DC Current Consumption: ca. 50mA Photoelectric chamber, type SF104,with dry contact 50mA interface. Including connection cable RJ12/6_5, 5m Dimensions: 84 x 77 mm (D x H)

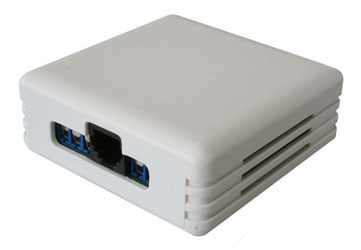

Relay Box Digital IO – SM_IO

Digital I/O Module for Indoor use IP 22. Extension to SENSORMANAGER II or extension to SM Temperature sensor. 1 Input Alarm Contact, 1 Output Alarm contact (Normal Open or Normal Closed). 1 Contact NC and NO (vice-versa), max. Switching power 2A, max. Voltage 250VAC. Includes connection cable RJ12/6_5, 5m.

ALARM BEACON– SM_FLASH

Flashlight, Strobe. Free configurable to any CS121 or SENSORMANAGER alarm. Internal power supply. For Indoor use IP 22. Including connection cable RJ12/6_5.

DOOR CONTACT– SM_DC

Door contact, Magnetic alarm contact. RJ12/6_5, 5m, (Included) max. 50m

AC Current Sensor – SM_CS25A

Measurement Range: 0 – 25A (AC, True RMS) Power Supply Voltage: 12 - 15V DC Output Signal: 0 - 10V DC Special Features: connection for other sensors Connection Cable: RJ12/6_5, 5m (Included) max. 50m Mounting: DinRail or lateral mounting clips Dimensions: 70 x 80 x 80 mm (W x L x H), Hall sensor diameter hole : 9.25mm

AC Current Sensor – SM_CS50A

Measurement Range: 0 – 50A (AC, True RMS) Power Supply Voltage: 12 - 15V DC Output Signal: 0 - 10V DC Special Features: connection for other sensors Connection Cable: RJ12/6_5, 5m (Included) max. 50m Mounting: DinRail or lateral mounting clips Dimensions: 70 x 80 x 80 mm (W x L x H), Hall sensor diameter hole : 9.25mm

AC Current Sensor – SM_CS75A

Measurement Range: 0 – 75A (AC, True RMS) Power Supply Voltage: 12 - 15V DC Output Signal: 0 - 10V DC Special Features: connection for other sensors Connection Cable: RJ12/6_5, 5m (Included) max. 50m Mounting: DinRail or lateral mounting clips Dimensions: 70 x 80 x 80 mm (W x L x H), Hall sensor diameter hole : 9.25mm

AC Current Sensor – SM_CS100A

Measurement Range: 0 – 100A (AC, True RMS) Power Supply Voltage: 12 - 15V DC Output Signal: 0 - 10V DC Special Features: connection for other sensors Connection Cable: RJ12/6_5, 5m (Included) max. 50m Mounting: DinRail or lateral mounting clips Dimensions: 70 x 80 x 80 mm (W x L x H), Hall sensor diameter hole : 9.25mm

AC Current Sensor – SM_CS130A

Measurement Range: 0 – 130A (AC, True RMS) Power Supply Voltage: 12 - 15V DC Output Signal: 0 - 10V DC Special Features: connection for other sensors Connection Cable: RJ12/6_5, 5m (Included) max. 50m Mounting: DinRail or lateral mounting clips Dimensions: 70 x 80 x 80 mm (W x L x H), Hall sensor diameter hole : 9.25mm

Splitting Plug – SPSMRJ

Splitting Plug to split the cable to connect 2 * SM sensors and/or any digital input/output eg. SM_IO to 1 SENSORMANAGER II connector. To use all 8 analog, 4 inputs and 4 outputs of the SENSORMANAGER II 4 splitting plugs are required

Alarm Buzzer – SM_II_BUZ

Sound Level: 85dB Power Supply Voltage: 12-15V DC Current Consumption: ca. 30mA Cables : RJ12/6_5, 5m, (Included) max. 50m Dimensions: 70 x 70 x 27 mm (W x L x H)

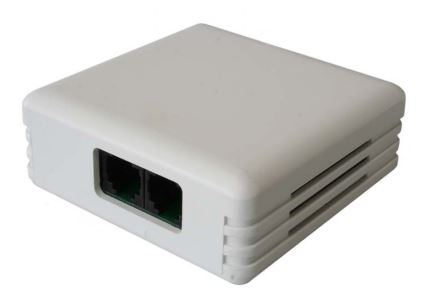

Temperature sensor – SM_II_T

Measurement Range: 0°C - +100 °C. +/- 1% Power Supply Voltage: 15-24V DC Output Voltage: 0-10VDC Additional Inputs: 1 Digital (Additional Sensor) Special Features: Connection for other sensors Connection Cable: RJ12/6_5, 5m, Included, max. 50m Dimensions: 70 x 70 x 27 mm (W x L x H)

Temperature sensor – SM_II_T_H

Measurement Range Temperature: 0°C - +100 °C. +/- 1% Measurement Range Relative Humidity: 0 – 100% RH. +/- 5% Power Supply Voltage: 15-24V DC Output Voltage: 2 x 0-10VDC Connection Cable: RJ12/6_5, 5m, Included, max. 50m Dimensions: 70 x 70 x 27 mm (W x L x H)

Temperature sensor – SM_II_T_DIG

Measurement Range: -25°C - +125 °C. +/- 1% Power Supply Voltage: 15-24V DC Output Voltage: One wire Connection Cable: RJ12/6_5, 5m, Included, max. 50m Dimensions: 70 x 70 x 27 mm (W x L x H)

True RMS Converter AC Voltage – SM_II_VMC

Measurement Range: 160 - 250V (AC, True RMS) Power Supply Voltage: 15 - 24V DC Output Signal: 0 - 10V DC Special Features: Measurement via accompanying power supply Connection Cable: RJ12/6_5, 5m, (Included) max. 50m Dimensions: 70 x 70 x 27 mm (W x L x H)

True RMS Converter AC Current Sensor – SM_II_CMC

Measurement Range: Depending on CT Power Supply Voltage: 15 - 24V DC Output Signal: 0 - 10V DC Connection Cable: RJ12/6_5, 5m, (Included) max. 50m Dimensions: 70 x 70 x 27 mm (W x L x H)

Water and high humidity sensor – SM_II_HYGRO

Measurement Range: 94% rel. Humidity Power Supply: 230VAC, +/- 10%, 3VA Current Consumption: ca. 15 mA Contact Load: 250 VAC, 6A Type of Contact: NC Special Features: 1 Sensor (Included in delivery) included alarm buzzer

Sensor for SM_II_HYGRO – SM_II_HYG_S Up to 3 sensors may be connected Connection Cable: RJ12/6_5, 5m, (Included) max. 50m Dimensions: 112 x 94 x 52 mm (W x L x H)

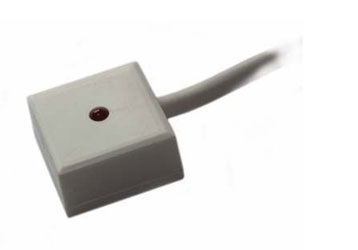

Glass break sensor – SM_II_GLAS

Measurement Range: Radius ca. 2m. Type of Contact: NC Frequency Domain: 120 kHz Connection Cable: RJ12/6_5, 5m, (Included) max. 50m Dimensions: 27 x 27 x 14 mm (W x L x H)

Motion Detector – SM_II_MD

Type of Contact: NC Power Supply Voltage: 9 – 16 V DC Dimensions: 27 x 27 x 14 mm (W x L x H) Measurement Range: 14m * 14m, 90°. Infrared, type BW2200. Connection Cable: RJ12/6_5, 5m, (Included) max. 50m

Smoke Detector – SM_II_SD

Power Supply Voltage: 10 – 15V DC Current Consumption: ca. 50mA Photoelectric chamber, type SF104,with dry contact 50mA interface. Including connection cable RJ12/6_5, 5m Dimensions: 84 x 77 mm (D x H)

ALARM BEACON– SM_II_FLASH

Flashlight, Strobe. Power Supply Voltage: 12-15V DC Current Consumption: ca. 170mA Connection Cable: RJ12/6_5, 5m, (Included) max. 50m Dimensions: 70 x 40 mm (L x H)

DOOR CONTACT– SM_II_DC

Door contact, Magnetic alarm contact. RJ12/6_5, 5m, (Included) max. 50m

AC Current Sensor – SM_II_CS25A

Measurement Range: 0 – 25A (AC, True RMS) Power Supply Voltage: 12 - 15V DC Output Signal: 0 - 10V DC Special Features: connection for other sensors Connection Cable: RJ12/6_5, 5m (Included) max. 50m Mounting: DinRail or lateral mounting clips Dimensions: 70 x 80 x 80 mm (W x L x H), Hall sensor diameter hole : 9.25mm

AC Current Sensor – SM_II_CS50A

Measurement Range: 0 – 50A (AC, True RMS) Power Supply Voltage: 12 - 15V DC Output Signal: 0 - 10V DC Special Features: connection for other sensors Connection Cable: RJ12/6_5, 5m (Included) max. 50m Mounting: DinRail or lateral mounting clips Dimensions: 70 x 80 x 80 mm (W x L x H), Hall sensor diameter hole : 9.25mm

AC Current Sensor – SM_II_CS75A

Measurement Range: 0 – 75A (AC, True RMS) Power Supply Voltage: 12 - 15V DC Output Signal: 0 - 10V DC Special Features: connection for other sensors Connection Cable: RJ12/6_5, 5m (Included) max. 50m Mounting: DinRail or lateral mounting clips Dimensions: 70 x 80 x 80 mm (W x L x H), Hall sensor diameter hole : 9.25mm

AC Current Sensor – SM_II_CS100A

Measurement Range: 0 – 100A (AC, True RMS) Power Supply Voltage: 12 - 15V DC Output Signal: 0 - 10V DC Special Features: connection for other sensors Connection Cable: RJ12/6_5, 5m (Included) max. 50m Mounting: DinRail or lateral mounting clips Dimensions: 70 x 80 x 80 mm (W x L x H), Hall sensor diameter hole : 9.25mm

AC Current Sensor – SM_II_CS130A

Measurement Range: 0 – 130A (AC, True RMS) Power Supply Voltage: 12 - 15V DC Output Signal: 0 - 10V DC Special Features: connection for other sensors Connection Cable: RJ12/6_5, 5m (Included) max. 50m Mounting: DinRail or lateral mounting clips Dimensions: 70 x 80 x 80 mm (W x L x H), Hall sensor diameter hole : 9.25mm

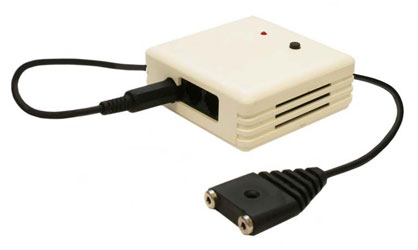

Water and high humidity sensor – SM_64_II_Hygro

Measurement Range: 94% rel. Humidity Power Supply: 230VAC, +/- 10%, 3VA Current Consumption: ca. 15 mA Contact Load: 250 VAC, 6A Type of Contact: NC Special Features: 1 Sensor (Included in delivery) included alarm buzzer Sensor SM_64_II_HYG_S Up to 3 sensors may be connected Connection Cable: RJ12/6_5, 5m, (Included) max. 50m Dimensions: 112 x 94 x 52 mm (W x L x H)

Glass break sensor – SM64_II_GLAS

Measurement Range: Radius ca. 2m. Type of Contact: NC Frequency Domain: 120 kHz Connection Cable: RJ12/6_5, 5m, (Included) max. 50m Dimensions: 27 x 27 x 14 mm (W x L x H)

Motion Detector – SM64_II_MD

Type of Contact: NC Power Supply Voltage: 9 – 16 V DC Dimensions: 27 x 27 x 14 mm (W x L x H) Measurement Range: 14m * 14m, 90°. Infrared, type BW2200. Connection Cable: RJ12/6_5, 5m, (Included) max. 50m

Smoke Detector – SM64_II_SD

Power Supply Voltage: 10 – 15V DC Current Consumption: ca. 50mA Photoelectric chamber, type SF104,with dry contact 50mA interface. Including connection cable RJ12/6_5, 5m Dimensions: 84 x 77 mm (D x H)

DOOR CONTACT– SM64_II_DC

Door contact, Magnetic alarm contact. RJ12/6_5, 5m, (Included) max. 50m

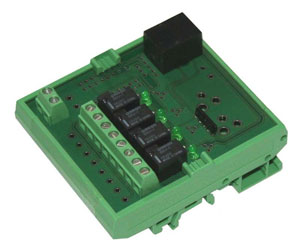

Relay Board – SM64_CON_R

Relay connection terminal - this device connects to AUX1 and/or AUX2 and is an Output interface with 4 relay outputs (0.5A /125V AC or 1A /24V DC) and LEDs showing the actual relay position. Outputs are freely configurable. For DIN rail mounting. Includes: Connection cable RJ12/6_1 - 1 meter, No external power supply needed, powered by SM64.
