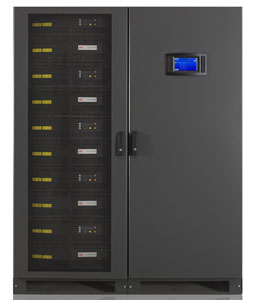

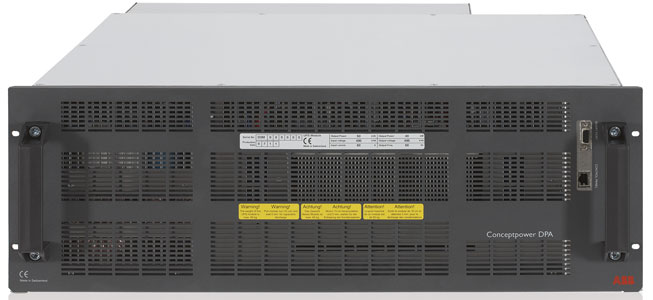

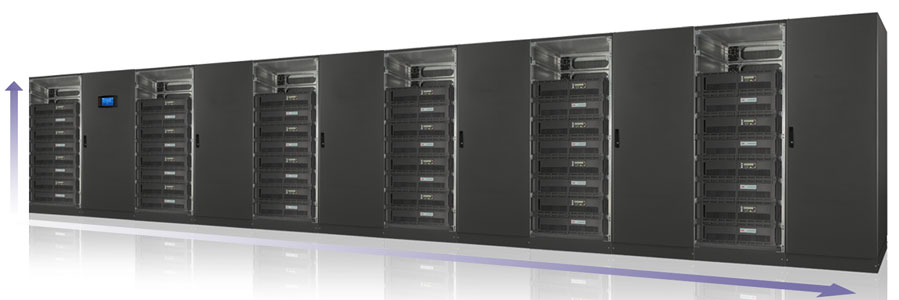

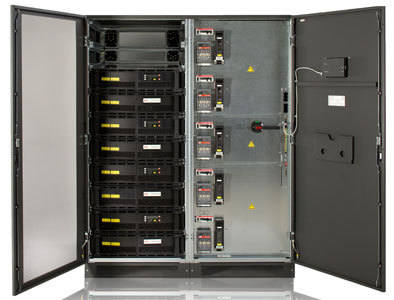

CONCEPTPOWER DPA 500

Power Rating (kVA)

100 - 500

Topology

Online

Parallel

6 units, up to 300kVA / 3MVA

Modular

100

Phase

3

Options

Maintenance Bypass Switch, SNMP/Web Adapter, Remote Display, Environmental Monitoring, Battery Cabinet, Temp Sensor, INPUT/OUTPUT Transformer for galvanic isolation, bypass transformer, IP21

Features and Benefits

  • True modularity up to 3MW
  • High output power factor eliminates need for UPS oversizing
  • Constant high efficiency at full and partial load
  • True Parallel Architecture
  • 100kW modules / 500kW per frame
  • Unity output power factor
  • Online Swap Modularity (OSM)
  • Top or Bottom Cable Feed
  • Transformer Free
  • Backfeed protection standard included providing a safe work environment
  • Relay Inputs

Downloads

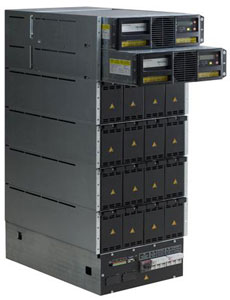

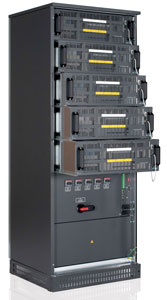

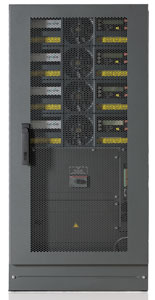

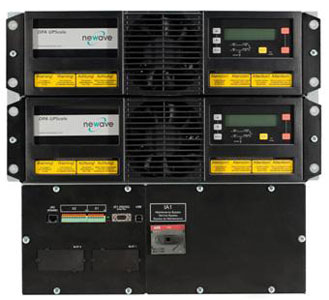

CONCEPTPOWER DPA UPSCALE ST 10 – 200 kW

Power Rating (kVA)

10 – 200, Modules 10kW / 20kW Frames 40kW, 60kW, 80kW, 120kW and 200kW

Topology

Online

Parallel

Modular

10/20

Phase

3

Options

Maintenance Bypass Switch, SNMP/Web Adapter, Environmental Monitoring, Battery Cabinet, Temp Sensor, Backfeed protection

Features and Benefits

  • True modularity
  • High output power factor eliminates need for UPS oversizing
  • Constant high efficiency at full and partial load
  • True Parallel Architecture
  • 10kW /20kW modules
  • Unity output power factor
  • Online Swap Modularity (OSM)
  • Bottom Cable Feed
  • Transformer Free
  • Relay Inputs – generator
  • 5 different frame types with 2 types of modules
  • Dual or single feeds

Downloads

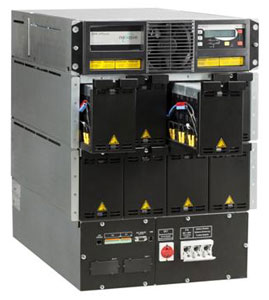

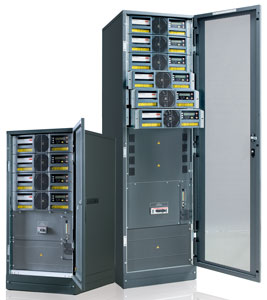

CONCEPTPOWER DPA UPSCALE RI 10 - 80 kW

Power Rating (kVA)

10 – 80, Modules 10kW / 20kW Frames 20kW, 40kW, 80kW

Topology

Online

Parallel

Modular

10/20

Phase

3

Options

Maintenance Bypass Switch, SNMP/Web Adapter, Environmental Monitoring, Battery Cabinet, Temp Sensor, Backfeed protection

Features and Benefits

  • True modularity
  • High output power factor eliminates need for UPS oversizing
  • Constant high efficiency at full and partial load
  • True Parallel Architecture
  • 10kW /20kW modules
  • Unity output power factor
  • Online Swap Modularity (OSM)
  • Bottom Cable Feed
  • Transformer Free
  • Relay Inputs, eg generator
  • 7 different frame types with 2 types of modules
  • Dual or single feed
  • Input / Output Transformer

Downloads

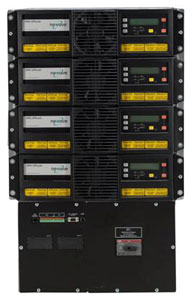

CONCEPTPOWER DPA S2 30 - 250 kVA

Power Rating (kVA)

30 – 250, Modules 30kVA / 40kVA and 50kVA, Frames 50kVA, 150kVA and 250kVA

Topology

Online

Parallel

6 Frames, 1.5 MVA

Modular

30/40/50

Phase

3

Options

Maintenance Bypass Switch, SNMP/Web Adapter, Environmental Monitoring, Battery Cabinet, Temp Sensor, Input/Output transformer, Higher IP ratings, Cold start

Features and Benefits

  • True modularity
  • High output power factor eliminates need for UPS oversizing
  • Full power from 0.9 lead to 0.8 lag
  • True Parallel Architecture
  • 30kVA / 40kVA and 50kVA modules
  • High output power factor
  • Online Swap Modularity (OSM)
  • Bottom Cable Feed
  • Transformer Free
  • Relay Inputs – generator
  • 3 different frame types with 3 types of modules
  • Internal or external battery options
  • Input / Output Transformer
  • Dual or single feeds
  • Backfeed protection

Downloads

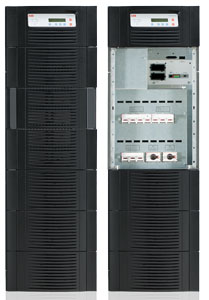

PowerScale 10-50 kVA

Power Rating (kVA)

10 – 50, 10-15-20-25-30-40-50 3 Frames

Topology

Online

Parallel

20 Frames, 1 MVA

Modular

Phase

3

Options

Maintenance Bypass Switch, SNMP/Web Adapter, Environmental Monitoring, Parallel Kit Battery Cabinet, Temp Sensor, Input/Output transformer, Relay/USB card outputs, Backfeed protection

Features and Benefits

  • Parallel capable for up to 20 units for redundancy or capacity
  • High output power factor eliminates need for UPS oversizing
  • Full power from 0.9 lead to 0.8 lag
  • High output power factor
  • Bottom Cable Feed
  • Transformer Free
  • Relay Inputs – including generator
  • 3 different frame types
  • Internal or external battery options
  • Input / Output Transformer
  • Dual or single feeds
  • Backfeed protection

Downloads

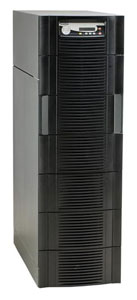

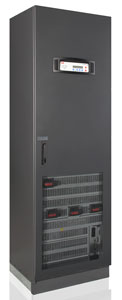

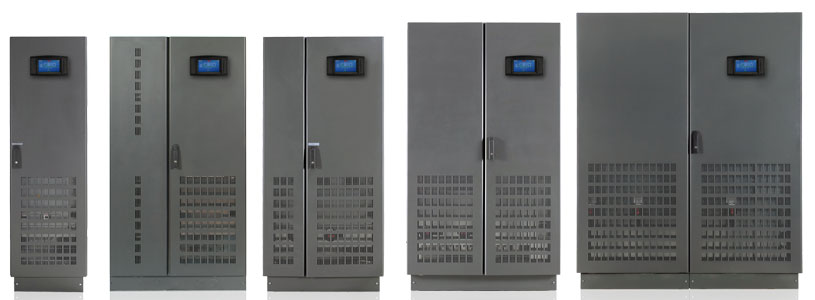

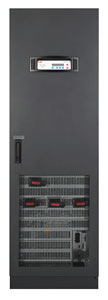

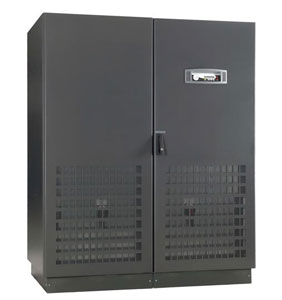

PowerWave 33 60-500 kVA

Power Rating (kVA)

60 – 500, 60-80-100-120-160-250-300-400-500 3 Frames

Topology

Online

Parallel

7 Frames, 5 MVA /5000kVA

Modular

Phase

3

Options

Maintenance Bypass Switch, SNMP/Web Adapter, Environmental Monitoring, Parallel Kit Battery Cabinet, Temp Sensor, Input/Output transformer, Backfeed protection

Features and Benefits

  • Parallel capable for up to 20 units for redundancy or capacity
  • High output power factor eliminates need for UPS oversizing
  • Full power from 0.9 lead to 0.9 lag
  • High output power factor
  • Top or Bottom Cable Feed (400-500 kVA)
  • Transformer Free
  • Relay Inputs – including generator
  • 7 different frame types
  • Internal or external battery options
  • Input / Output Transformer
  • Dual or single feeds
  • Backfeed protection

Downloads

PowerWave 33 Series 3 60-120 kVA

Power Rating (kVA)

60 – 120, 60-80-100-120 2 Frames

Topology

Online

Parallel

10 Frames, 1.2 MVA /1200kVA

Modular

Phase

3

Options

Maintenance Bypass Switch, SNMP/Web Adapter, Environmental Monitoring, Parallel Kit, Battery Cabinet, Temp Sensor, Input/Output transformer, Backfeed protection

Features and Benefits

  • Parallel capable for up to 10 units for redundancy or capacity
  • High output power factor eliminates need for UPS oversizing
  • Full power from 0.9 lead to 0.9 lag
  • Bottom Cable Feed
  • Transformer Free
  • Relay Inputs – including generator
  • 2 different frame types
  • External battery options
  • Input / Output Transformer
  • Dual feed
  • USB/Relay Kit
  • Parallel Kit

Downloads

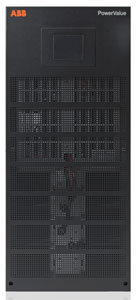

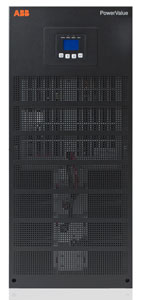

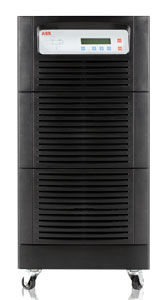

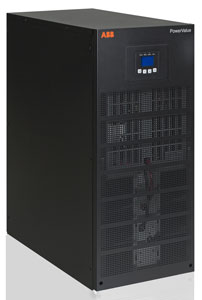

PowerValue 11-31 T

Power Rating (kVA)

10kVA, 20kVA

Topology

Online

Parallel

4 Frames, 80kVA

Modular

Phase

1, 3-1

Options

Maintenance Bypass Switch, SNMP/Web Adapter, Environmental Monitoring, Relay Card Battery Cabinet, Backfeed protection

Features and Benefits

  • Three or One Phase In/One Phase out
  • Parallel capable for up to 4 units for redundancy or capacity
  • High output power factor eliminates need for UPS oversizing
  • Full power from 0.9 lead to 0.9 lag
  • Bottom Cable Feed
  • Transformer Free
  • Relay Inputs – including generator
  • External battery options
  • Single or Dual feed
  • Parallel Kit Standard
  • Automatic Load startup
  • 4 Battery cabinets
  • 3 or 1 Phase selectable

Downloads

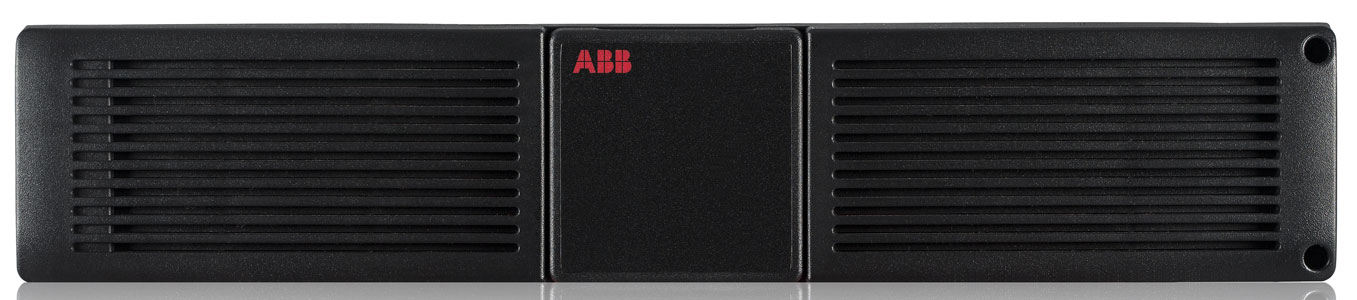

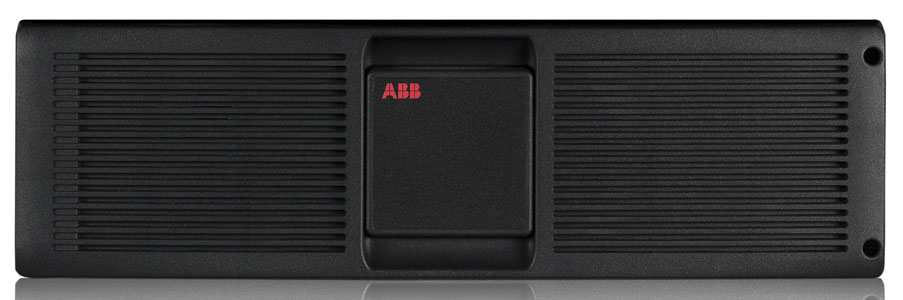

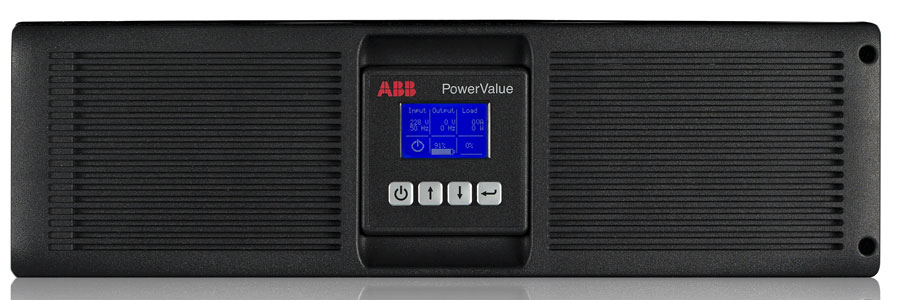

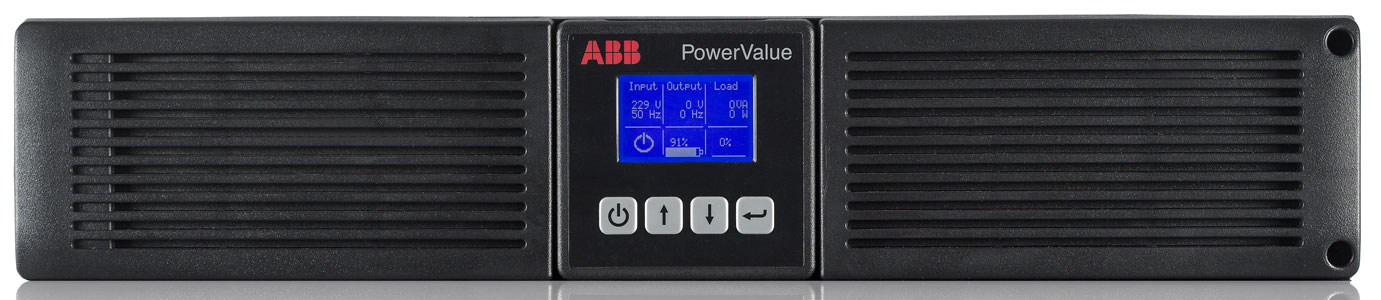

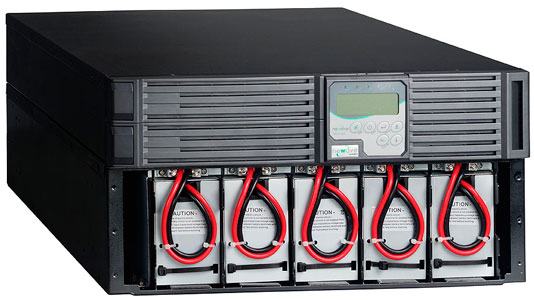

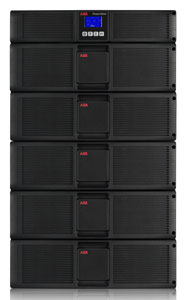

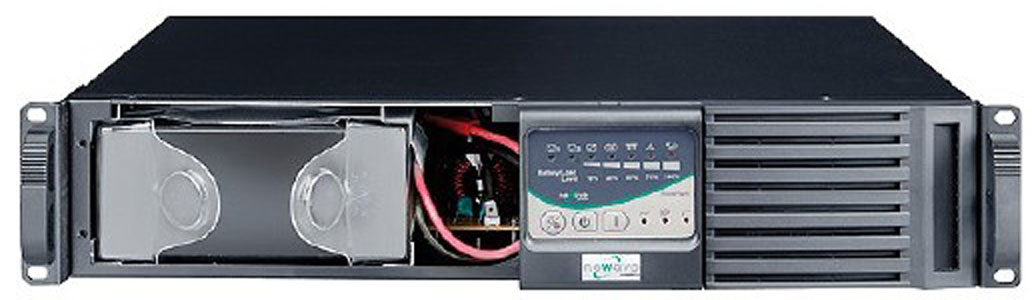

PowerValue 11 RT

Power Rating (kVA)

1-10kVA

Topology

Online

Parallel

2 Units, 6/10 kVA

Modular

Phase

1

Options

Maintenance Bypass Switch, SNMP/Web Adapter, Environmental Monitoring, Relay Card BatteryBoxes, Rail kits (1-3kVA / 6-10kVA)

Features and Benefits

  • Cold Start
  • Parallel capable for up to 2 units for redundancy or capacity
  • High output power factor
  • Full power from 0.9 lead to 0.9 lag
  • Transformer Free
  • Up to 4 External battery boxes
  • Automatic Load startup
  • Automatic Fan Speed Control
  • Wide input and frequency
  • Single or Dual Feed (6/10kVA)
  • Backfeed protection

Downloads

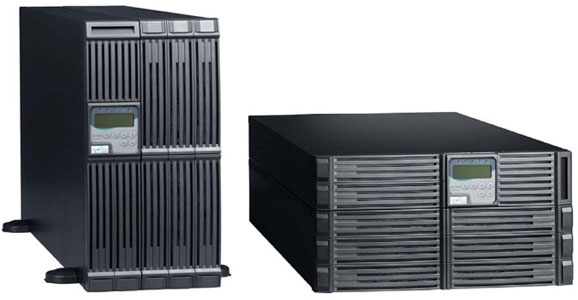

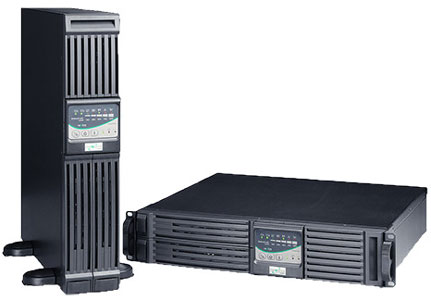

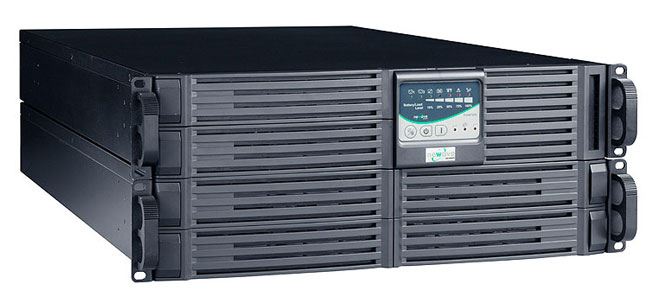

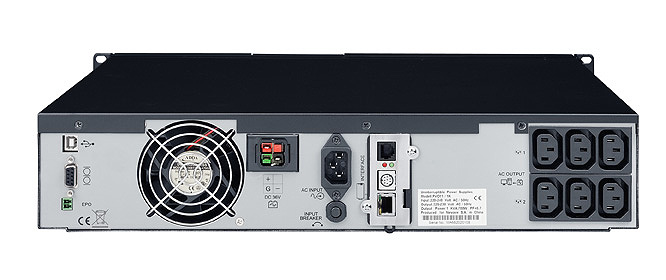

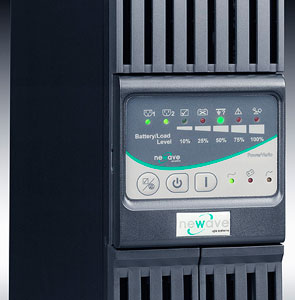

PowerVario 11 RT

Power Rating (kVA)

1-10kVA

Topology

Online

Parallel

3 Units, 6/10 kVA

Modular

Phase

1

Options

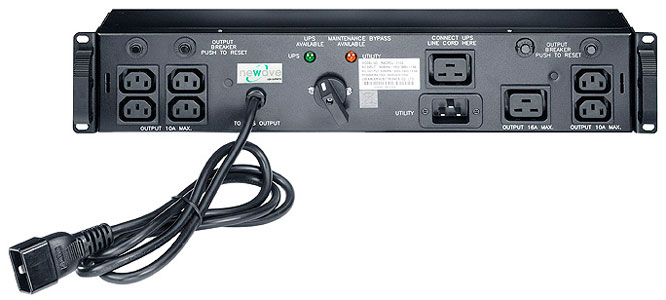

Maintenance Bypass Switch, SNMP/Web Adapter, Environmental Monitoring, Relay Card Battery Boxes, Rail kits (1-3kVA / 6-10kVA)

Features and Benefits

  • Short Comms Rack Version for 1-6kVA
  • Cold Start
  • Parallel capable for up to 3 units for redundancy or capacity
  • High output power factor
  • Transformer Free
  • Up to 4 External battery boxes
  • Automatic Load startup
  • Automatic Fan Speed Control
  • Wide input and frequency
  • Switchable Outlets
