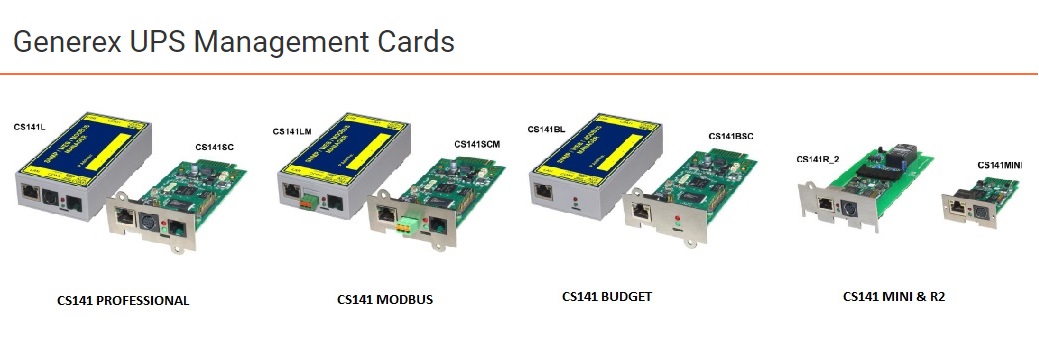

Generex UPS Management Cards

Generex UPS Management Cards – CS141L and CS141SC

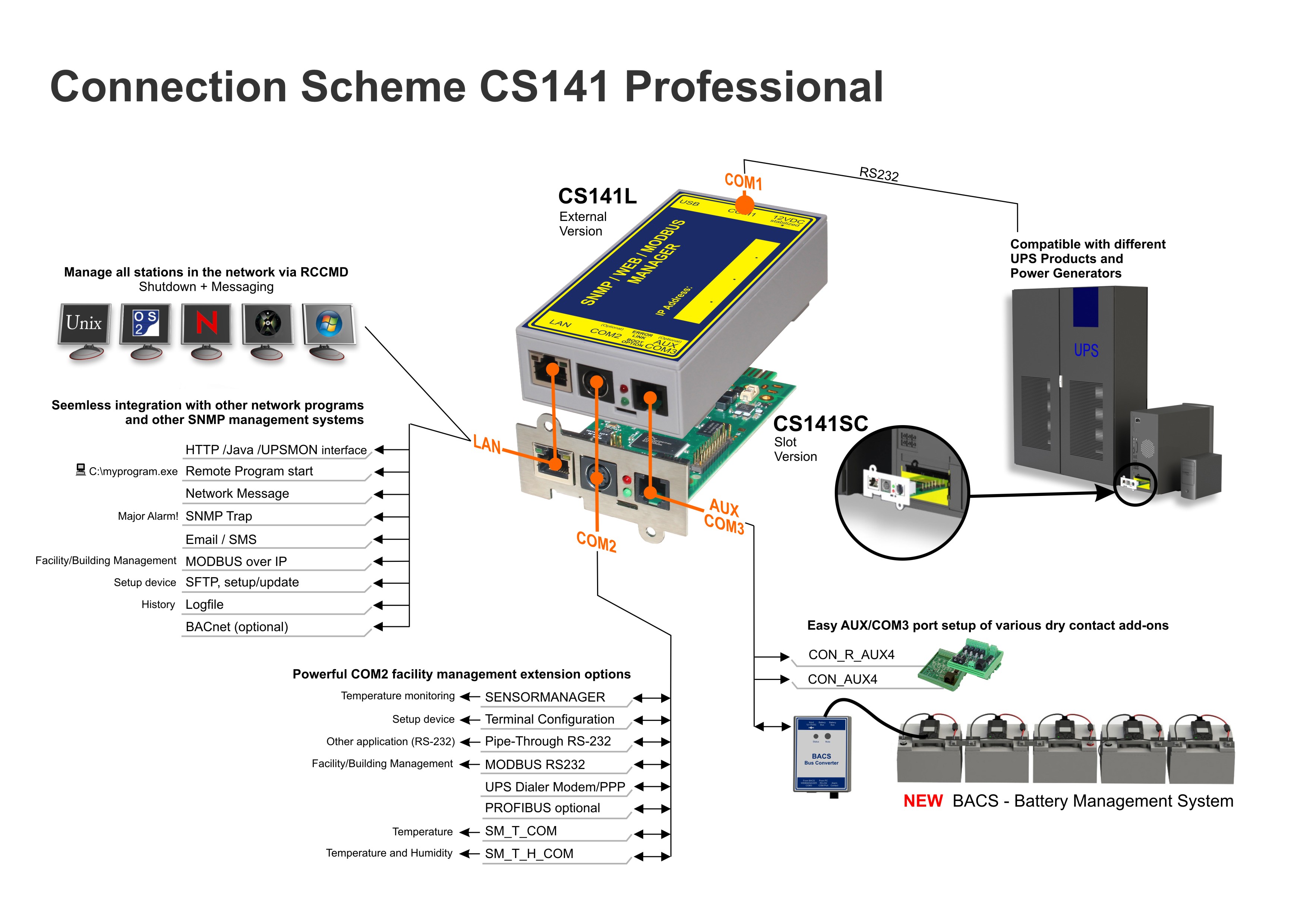

Generex CS141L and CS141SC Professional External UPS management card

Model

CS141 Professional External, CS141L and CS141SC

Introduction

Generex offers a range of advanced UPS monitoring cards that integrate with over 1400 models of UPS and provide an extensive alerts and events engine. The controller will alert you on given conditions and when required will gracefully shutdown your system in the way you specify. This tool is indispensable in any modern computer installation or datacentre.

Features

  • Powerful Web Interface
  • Independent UPS integration via RS-232 (1400 models and 100 vendors)
  • BACS integration
  • Optional environmental sensors, alarm, contact inputs
  • Event driven alert engine
  • Modem integration for alerts and remote access

Includes

Documentation, power supply, shutdown and management software

Communications and alerts

Communications protocols

HTTP, HTTPS, SMTP, SSH V1, SSH V2, TCP/IP, Telnet, FTP

Access via

Web (HTTP, HTTPS), Telnet /SSH, SNMP, Modbus, RS232, FTP

Information via

SNMP V1/V2c/V3, Modbus, Email, SMS, Log

Alerts via

Email, SNMP Traps, Modbus, Relay, Beacon (optional)

Options supported

Connection terminal (4 inputs (dry contact), relay board (4 digital inputs and 4 relay outputs), Profibus converter, Lonworks converter, Alarm buzzer, Temperature Sensor, Temp/Humidity Sensor, Modems, in addition the units supports Sensor Manager for sensors and extended functionality

Downloads

Generex UPS Management Cards – CS141LM and CS141SCM

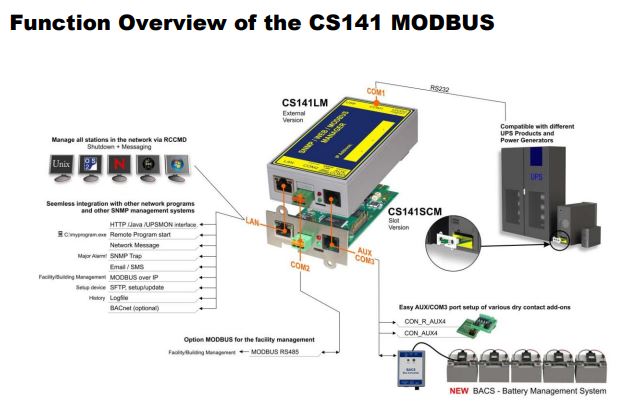

Generex CS141LM and CS141SCM Professional External UPS management card

Model

CS141 Professional External, CS141LM and CS141SCM

Introduction

Generex offers a range of advanced UPS monitoring cards that integrate with over 1400 models of UPS and provide an extensive alerts and events engine. The controller will alert you on given conditions and when required will gracefully shutdown your system in the way you specify. This tool is indispensable in any modern computer installation or datacentre.

Features

  • Powerful Web Interface
  • Independent UPS integration via RS-232 (1400 models and 100 vendors)
  • BACS integration
  • Optional environmental sensors, alarm, contact inputs
  • Event driven alert engine
  • Modem integration for alerts and remote access

Includes

Documentation, power supply, shutdown and management software

Communications and alerts

Communications protocols

HTTP, HTTPS, SMTP, SSH V1, SSH V2, TCP/IP, Telnet, FTP

Access via

Web (HTTP, HTTPS), Telnet /SSH, SNMP, Modbus, RS232, FTP

Information via

SNMP V1/V2c/V3, Modbus, Email, SMS, Log

Alerts via

Email, SNMP Traps, Modbus, Relay, Beacon (optional)

Options supported

Connection terminal (4 inputs (dry contact), relay board (4 digital inputs and 4 relay outputs), Profibus converter, Lonworks converter, Alarm buzzer, Temperature Sensor, Temp/Humidity Sensor, Modems, in addition the units supports Sensor Manager for sensors and extended functionality

Downloads

Generex UPS Management Cards – CS141BL and CS141BSC

Generex CS141BL and CS141BSC Professional Internal UPS management card

Model

CS141 Professional Internal, CS141BL and CS141BSC

Introduction

Generex offers a range of advanced UPS monitoring cards that integrate with over 1400 models of UPS and provide an extensive alerts and events engine. The controller will alert you on given conditions and when required will gracefully shutdown your system in the way you specify. This tool is indispensable in any modern computer installation or datacentre. The CS141BL external and CS141BSC slotcard, are designed for the use in most UPS including Newave, EATON UPS with BD slot, Socomec, MGE mini and many others. Please contact us for compatibility advice.

Features

  • Powerful Web Interface
  • External and Internal Slot Connection
  • BACS integration
  • Optional environmental sensors, alarm, contact inputs
  • Event driven alert engine
  • Modem integration for alerts and remote access

Includes

Documentation, shutdown and management software

Communications and alerts

Communications protocols

HTTP,HTTPS, SMTP, SSH V1, SSH V2, TCP/IP, Telnet, FTP

Access via

Web (HTTP, HTTPS), Telnet /SSH, SNMP, Modbus, RS232, FTP

Information via

SNMP V1/V2c/V3, Modbus, Email, SMS, Log

Alerts via

Email, SNMP Traps, Modbus, Relay, Beacon (optional)

Options supported

Connection terminal (4 inputs (dry contact), relay board (4 digital inputs and 4 relay outputs), Profibus converter, Lonworks converter, Alarm buzzer, Temperature Sensor, Temp/Humidity Sensor, Modems, in addition the units supports Sensor Manager for sensors and extended functionality

Downloads

Generex UPS Management Cards – CS141MINI

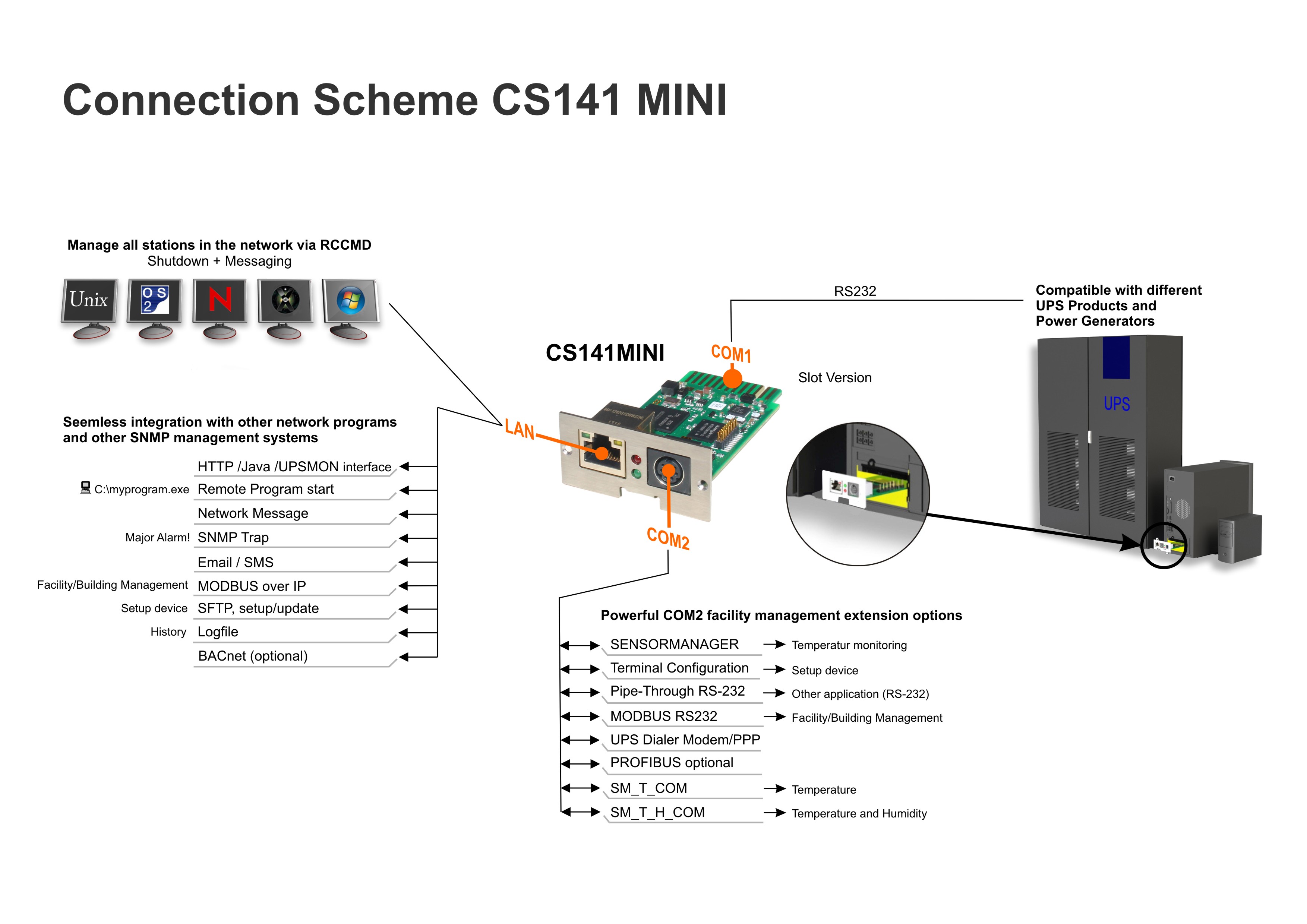

Generex CS141MINI Professional Internal (Slot) UPS management card in mini format for

Model

CS141 Mini Card, CS141MINI

Introduction

Generex offers a range of advanced UPS monitoring cards that integrate with over 1400 models of UPS and provide an extensive alerts and events engine. The controller will alert you on given conditions and when required will gracefully shutdown your system in the way you specify. This tool is indispensable in any modern computer installation or datacentre. The Mini card has a COM 2 connection like the professional CS141 for connecting a SENSORMANAGER, individual sensors like the SM_T_COM (temperature sensor), the SM_T_H_COM (combisensor for temperature and humidity), Modem, Pipe_Thru, and all other COM2 options - however it has no AUX or COM3 connector.

Features

  • Powerful Web Interface
  • Internal Mini Slot
  • BACS integration
  • Optional environmental sensors, alarm, contact inputs
  • Event driven alert engine
  • Modem integration for alerts and remote access

Includes

Documentation, shutdown and management software

Communications and alerts

Communications protocols

HTTP,HTTPS, SMTP, SSH V1, SSH V2, TCP/IP, Telnet, FTP

Access via

Web (HTTP, HTTPS), Telnet /SSH, SNMP, Modbus, RS232, FTP

Information via

SNMP V1/V2c/V3, Modbus, Email, SMS, Log

Alerts via

Email, SNMP Traps, Modbus, Relay, Beacon (optional)

Options supported

Connection terminal (4 inputs (dry contact), relay board (4 digital inputs and 4 relay outputs), Profibus converter, Lonworks converter, Alarm buzzer, Temperature Sensor, Temp/Humidity Sensor, Modems, in addition the units supports Sensor Manager for sensors and extended functionality

Downloads

CS141 UPS management card datasheet
